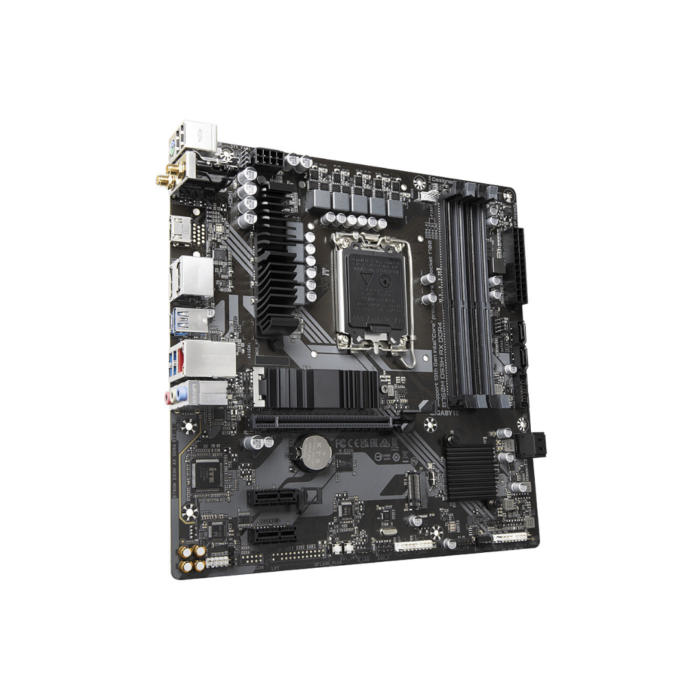

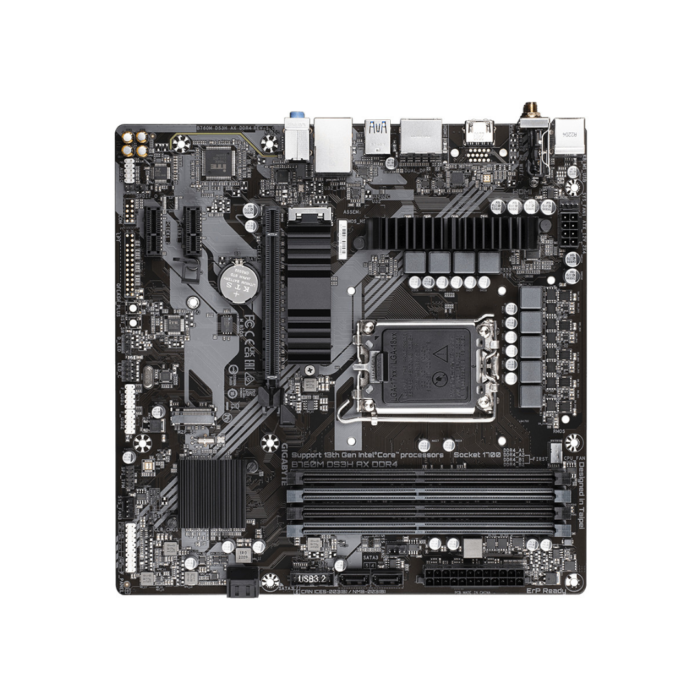

GIGABYTE B760M DS3H AX DDR4 Intel LGA1700 M-ATX Motherboard – 14th, 13th, and 12th Gen Intel® Core™ Processors, PCIe 4.0

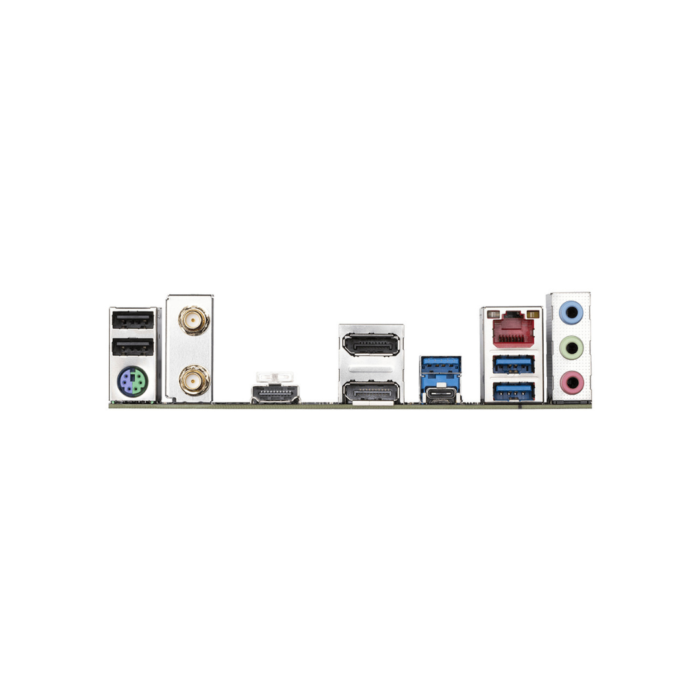

CPU: Socket: LGA1700 Supported Processors: 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold, and Celeron® Processors L3 cache varies with CPU Chipset: Intel® B760 Express Chipset Memory: Supported Memory Types: DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s Memory Slots: 4 x DDR DIMM sockets (up to 128 GB, 32 GB single DIMM capacity) Memory Architecture: Dual channel Memory Module Support: ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Extreme Memory Profile (XMP) memory modules Onboard Graphics: Integrated Graphics Processor-Intel® HD Graphics support Graphics Outputs: 1 x HDMI port (max resolution: 4096×2160@60 Hz, supports HDMI 2.1 version and HDCP 2.3) 1 x DisplayPort (max resolution: 4096×2304@60 Hz, supports DisplayPort 1.2 version and HDCP 2.3) Support for up to triple-display simultaneously Audio: Realtek® Audio CODEC High Definition Audio Audio Channels: 2/4/5.1/7.1-channel Support for S/PDIF Out LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Wireless Communication Module: Various models supporting Wi-Fi 6E and Bluetooth 5.2/5.3 standards Expansion Slots: CPU: 1 x PCI Express x16 slot (PCIe 4.0, x16) Chipset: 2 x PCI Express x1 slots (PCIe 3.0, x1) Storage Interface: CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB), 4 x SATA 6Gb/s connectors RAID Support: RAID 0, RAID 1, RAID 5, and RAID 10 for SATA storage devices USB: Chipset: 1 x USB Type-C® port (USB 3.2 Gen 2) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through internal header) 2 x USB 2.0/1.1 ports on the back panel Chipset 2 USB 2.0 Hubs: 4 x USB 2.0/1.1 ports available through internal USB headers Internal I/O Connectors: Various connectors for power, fans, headers, and ports Back Panel Connectors: 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 2 x DisplayPort 3 x USB 3.2 Gen 1 ports 1 x USB Type-C® port (USB 3.2 Gen 2) 1 x RJ-45 port 3 x audio jacks I/O Controller: iTE® I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control BIOS: 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Bundled Software: Norton® Internet Security (OEM version) LAN bandwidth management software Operating System: Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor: Mowjat ATX Form Factor; 24.4cm x 24.4cm
